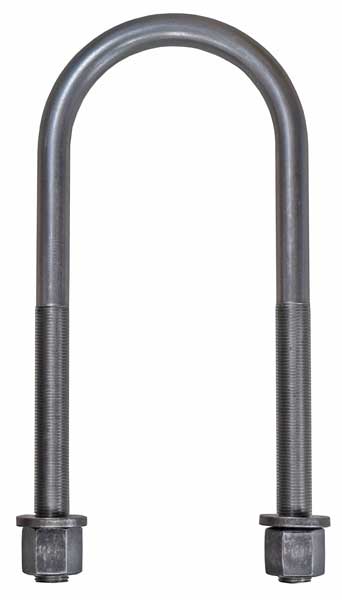

U Bolt, 5/8 x 2 3/4 x 10

Part Number:

B4WUR2750
U Bolt, 5/8 x 2 3/4 x 10
2 3/4" X 10" U-Bolt
Your Price: $11.00
review
5
0
5

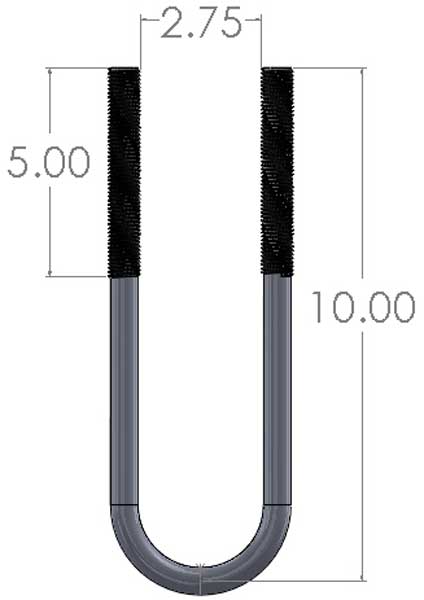

Barnes 4wd u-bolts are anything but standard! This u bolt measures 5/8" X 2 3/4" X 10" and are a great fit for Dana 44 axles. The biggest misconception with U-bolts is that they are all the same; this could not be farther from the truth. We feel that U-Bolts are the most important component of a leaf spring suspension and this is why we are so meticulous about the specifications of our U-bolts. Our U-bolts are made from a cold drawn 1541 alloy that is stress relieved. This produces an alloy that has grade 8 strength but not grade 8 hardness. The threads on our U-bolts are 5/8"-18 fine threads and are manufactured with a smooth rolled thread. The mating Hi-Nuts are hardened as well as the thick washers and are manufactured with sharp cut threads. When a U-Bolt is tightened the U-Bolt threads stretch as they mate with the Hi-Nuts. This insures proper tightness of the fastener is maintained. This stretching is not visible but a U-bolt should never be reused because removing the tall nut will cross thread the U-Bolt. Our U-bolts bolts have a torque spec of 150 foot pounds and should never be tightened with an impact gun.
Same Day Shipping
On most orders placed by 3pm EST when choosing UPS shipping options
text
Barnes 4wd u-bolts are anything but standard! This u bolt measures 5/8" X 2 3/4" X 10" and are a great fit for Dana 44 axles. The biggest misconception with U-bolts is that they are all the same; this could not be farther from the truth. We feel that U-Bolts are the most important component of a leaf spring suspension and this is why we are so meticulous about the specifications of our U-bolts. Our U-bolts are made from a cold drawn 1541 alloy that is stress relieved. This produces an alloy that has grade 8 strength but not grade 8 hardness. The threads on our U-bolts are 5/8"-18 fine threads and are manufactured with a smooth rolled thread. The mating Hi-Nuts are hardened as well as the thick washers and are manufactured with sharp cut threads. When a U-Bolt is tightened the U-Bolt threads stretch as they mate with the Hi-Nuts. This insures proper tightness of the fastener is maintained. This stretching is not visible but a U-bolt should never be reused because removing the tall nut will cross thread the U-Bolt. Our U-bolts bolts have a torque spec of 150 foot pounds and should never be tightened with an impact gun.
5 Stars
Mr
Everything I ordered came quickly and well packaged. The parts were dimensionally as advertised which was important because I have a non-standard install with a 2 3/4 dia Dana 60 axle tube. The bend radius was smooth with no kinks. Overall most pleased.
Reviewed by: (Verified Buyer)  from Iowa. on 8/12/2016
5/5
