Toyota Pick Up Heavy Duty Differential Cover

Part Number:

B4WK1012

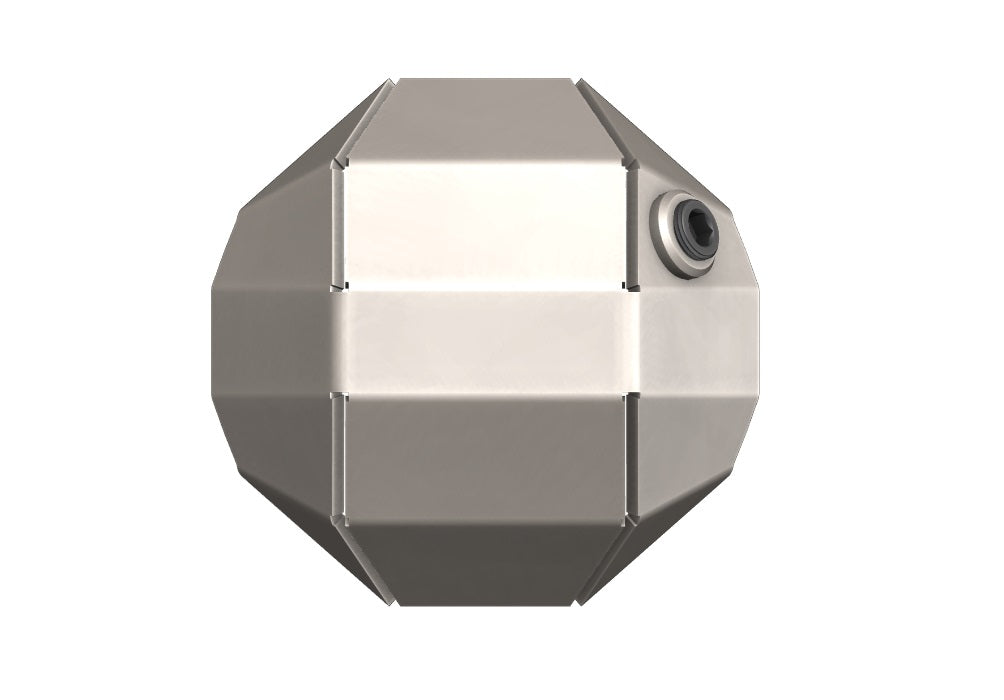

Toyota Pick Up Heavy Duty Differential Cover

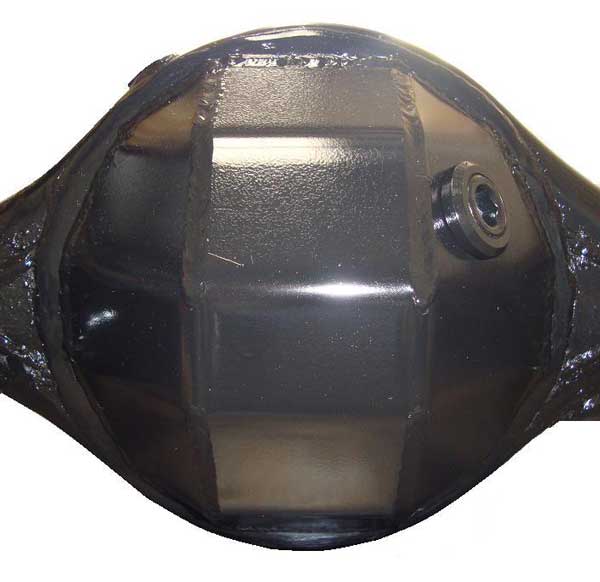

Toyota Differential Cover Installed
Your Price: $90.00
review
5
0
5
This cover will fit.

1994 and older Toyota Trucks
1995-2014 Tacoma with locking rear differential (E-locker) ONLY!
2001 and older 4 Runners

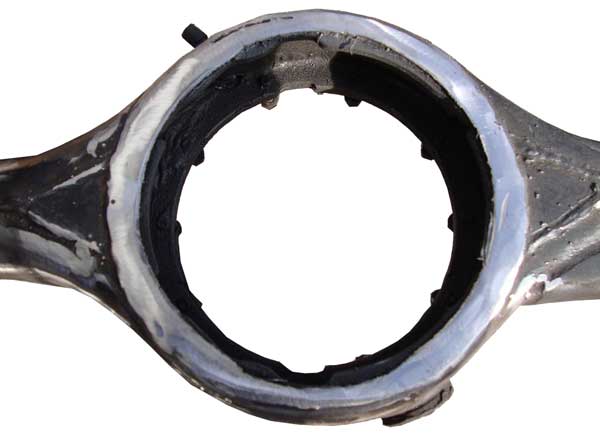

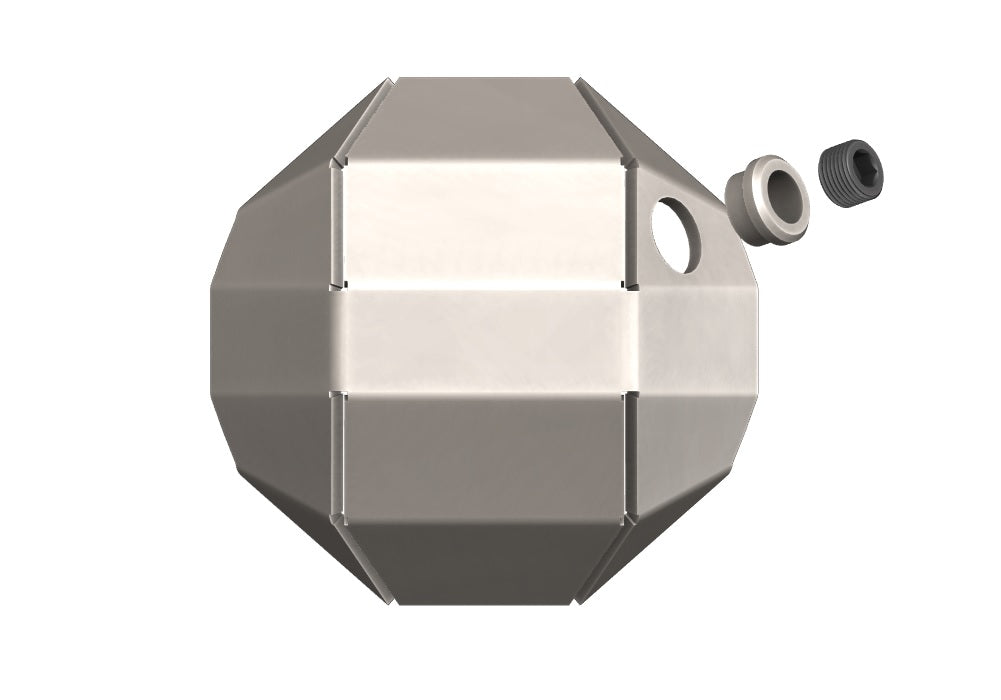

Barnes 4WD is proud to introduce the first Toyota Differential Cover that offers complete protection for your third member, maximizes clearance and increases fluid capacity. This cover is not your typical cap that you just weld over the thin stock housing. With our cover you completely remove the factory cap (a quick job with a cut off wheel) and weld a laser cut and bent ¼" plate steel cover in its place. This is a little more work but the payoff is worth it for the total coverage and increased oil capacity. Covers ship fully welded with a large fill plug so all you have to do is prep your axle and weld it on! Fill plug uses a 9/16 allen wrench.  This is also the most economical fix for a rusted leaking Toyota rear axle.



This cover will not fit any of the Tundras!
This cover will not fit a Tacoma that does not have a locking rear differential!
If you are looking for a Differential Cover for a Tacoma without the locking rear differential or any 1999-2006 Tundra click > HERE.



Same Day Shipping
On most orders placed by 3pm EST when choosing UPS shipping options
text
This cover will fit.

1994 and older Toyota Trucks
1995-2014 Tacoma with locking rear differential (E-locker) ONLY!
2001 and older 4 Runners

Barnes 4WD is proud to introduce the first Toyota Differential Cover that offers complete protection for your third member, maximizes clearance and increases fluid capacity. This cover is not your typical cap that you just weld over the thin stock housing. With our cover you completely remove the factory cap (a quick job with a cut off wheel) and weld a laser cut and bent ¼" plate steel cover in its place. This is a little more work but the payoff is worth it for the total coverage and increased oil capacity. Covers ship fully welded with a large fill plug so all you have to do is prep your axle and weld it on! Fill plug uses a 9/16 allen wrench.  This is also the most economical fix for a rusted leaking Toyota rear axle.



This cover will not fit any of the Tundras!
This cover will not fit a Tacoma that does not have a locking rear differential!
If you are looking for a Differential Cover for a Tacoma without the locking rear differential or any 1999-2006 Tundra click > HERE.



5 Stars
back yard mechanic
Ordered rear differential cover for my 2001 Toyota 4 runner that was leaking. Once my shipment came in took it to a local welder cost me $200 to have it put on and stopped the leak. Cover did the job and will probably outlast my truck. Great work guys at Barnes 4wd for coming through for me. Thanks Again!!!
Reviewed by: (Verified Buyer)  from Toronto. on 6/30/2018
5/5
5 Stars
Saved my axle
Thickest piece of metal on the truck.
Reviewed by:  from Lexington. on 6/27/2018
5/5
5 Stars
Mr.
Barnes 4WD Tacoma Rear Differential Cover saved my 2003 Tacoma Dbl Cab TRD 4x4!!! Stock Cover was rusted bad and leaking through the welded seams. After cutting the old Cover off with an Angle Grinder, we were able to smooth down the surface of the Housing really good. I welded the New Heavy Duty 1/4" Plate Steel Cover on with no problem(s). Its an awesome replacement Differential Cover, very well constructed and allowing for extra fluid capacity. I would highly recommend this Cover and the folks at Barnes 4WD as they were on the ball and got mine shipped to me in only a couple days with very good packaging.
Reviewed by:  from NE Ohio. on 1/14/2018
5/5
5 Stars
Mechanic
This cover is very well made. Very easy to install. Way cheaper than the alternative. I ordered it on a Saturday and had it on monday. Talk about fast service.
Reviewed by: (Verified Buyer)  from Hudson ny. on 3/1/2016
5/5
5 Stars
Master mechanic
I bought this cover for my wife's 4runner as it was the only cover i could find it is well built and made of high quality steel beter than material rear axle housing is made of it fit perfectly and as long as you take your time preping this cover works great and was a much cheaper alternative to a expensive axle housing. I welded this cover on myself and it took about an hour start to finish. Most weld shops charge a couple hundred bucks which is still a good deal i highly recommend this product
Reviewed by:  from Willington . on 1/9/2016
