Square Link Mount Bracket Pair
Square Link Mount Bracket Pair
Add to Build Sheet
Q&A
Square Link Mount Bracket Pair
4
Review(s)
5
0
5
Write a Review
Your Price:
$29.00

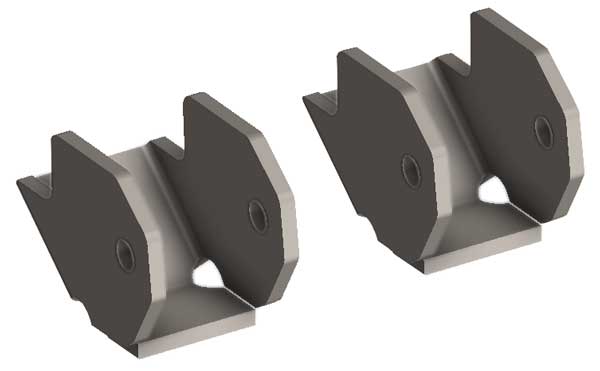

These link mounting brackets are made to be welded directly to any square mounting surface.
Part Number:
B4W250188P
Availability:
In Stock
Choose Options
Mounting Configuration
*

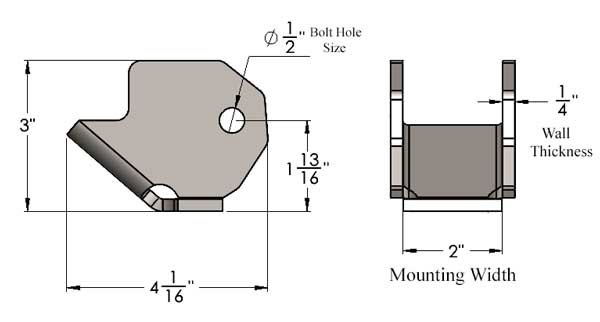

2” Wide, 0 Degree, ½” Bolt Hole
2” Wide, 10 Degree, 1/2” Bolt Hole
2” Wide, 20 Degree, ½” Bolt Hole

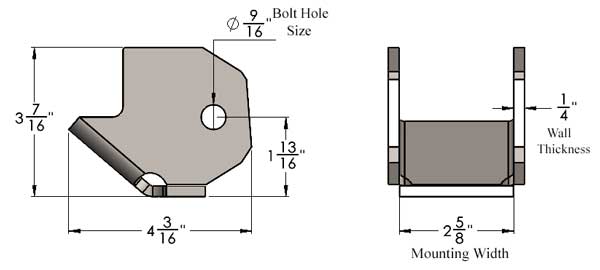

2 5/8” Wide, 0 Degree, 9/16” Bolt Hole
2 5/8” Wide, 10 Degree, 9/16” Bolt Hole
2 5/8” Wide, 20 Degree, 9/16” Bolt Hole
Put me on the Waiting List
Quantity
+
-
Add to Cart
Description
Customer Reviews

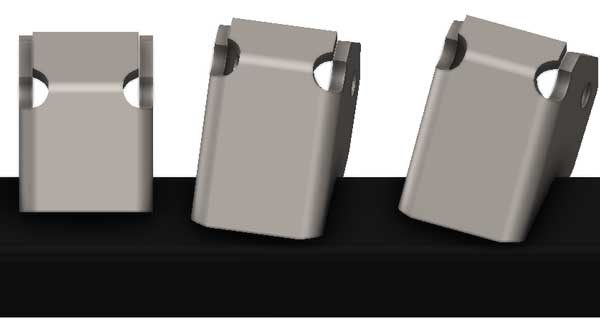

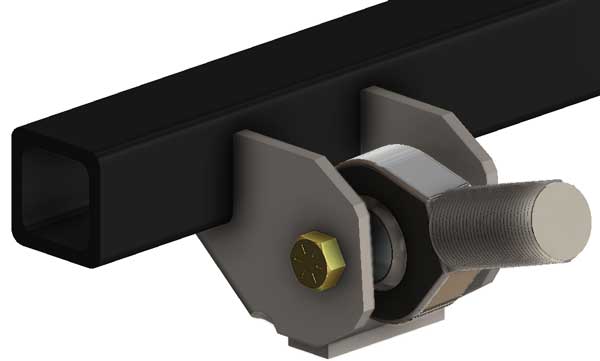

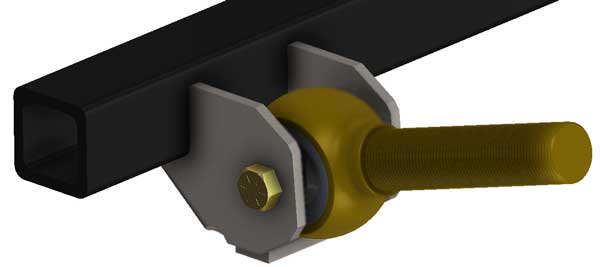

These link mounting brackets are made to be welded directly to any square mounting surface. This is a super strong CNC bent, Laser cut bracket made to take serious abuse. Perfect for a three link or four link suspension system. These are made to be attached to any square mounting surface and have an inside width of 2 5/8" or 2". We offer three different mounting angles so that you can mount your suspension joints in a neutral position to maximize joint articulation. Like all of our products, they are made in the USA from USA steel.
Rating Snapshot
Select a row below to filter reviews.
5 Stars
4
4 Stars
0
3 Stars
0
2 Stars
0
1 Stars
0
4 Stars
Clear Filter
×
Average Customer Ratings
5.0
Great bracket
Easy to customize. Great fit.
Reviewed by:
(Verified Buyer)
Max Krause
from Arizona on 1/10/2019
5
Flat Belly
I am building a JK stretched out to a JKU wheelbase with a double triangulated 4-link rear suspension. I needed a mounting solution for my lower links at the frame end that didn't sacrifice ground clearance. These brackets were the perfect solution,. Solid, great quality, and allowed for me to still run a fully flat belly pan while keeping my mounting point as low as possible. Will be buying these again for my future builds.
Reviewed by:
(Verified Buyer)
Brian Bennett
from Cincinnati, Ohio on 7/21/2018
5
beefy
Exactly what I needed to wrap up the 3 link crossmember under my cherokee keeps the belly hight up where I want it. Can't wait to smash it on some rocks and see how it holds up
Reviewed by:
(Verified Buyer)
Nathan Krizmanich
from greensboro,nc on 5/25/2015
5
braket reveiw
Nice part, great quality. would buy again, --and did!!
Reviewed by:
james dabbs
from Huntsville on 12/25/2012
5
