SD 60 Double Ended Ram Mount

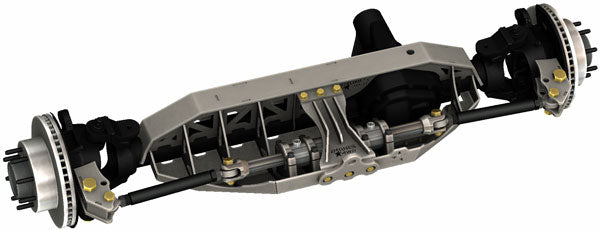

Ford Super Duty Dana 60 Double Ended Ram Mount (Ram mount only, no other items in image included)
Add to Build Sheet
Q&A
SD 60 Double Ended Ram Mount
Write a Review
Your Price:
$326.00
Part Number:
B4WK12359
Availability:
In Stock
Put me on the Waiting List
Quantity
+
-
Add to Cart
Description
Questions and Answers

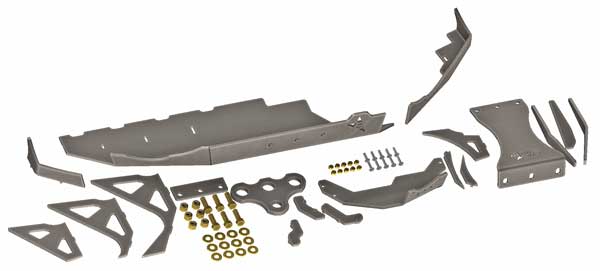

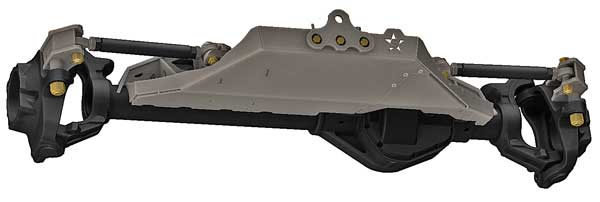

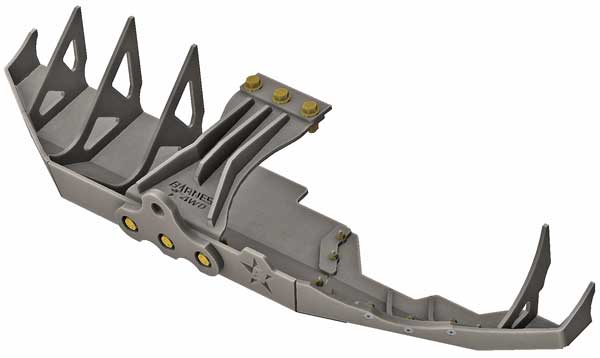

This kit is designed to be used with our Pro-Series 2005-UP Super Duty Dana 60 flat top axle truss and is compatible with the PSC Motorsports 2.5"x 8" double ended cylinder (SCX2212 or SC2212). We designed this double ended steering cylinder mount to use the proper geometry for full hydraulic steering and incorporate as much ground clearance as possible. Hydraulic steering cylinders are a very expensive part of your build, they are in a very vulnerable spot and need protection. This ram mount offers complete protection for the cylinder, and lines, giving you peace of mind while out on the trail. A winch point has also been incorporated for those that need a point to attach a winch to pull up the front axle on those steep climbs. A removable cover has also been incorporated, to allow full access to the gears and carrier if service needs to be performed after installation. All of the components in this kit are manufactured from 1/4" steel, and all hardware is included. This product will ship bare and need to be painted or powder coated after installation, welding is required
Q:
With this hydro mount work on the 88 ford king pin 60?
Asked by:
Robert Barnes
- 11/4/2019
A:
Thanks for the question. Unfortunately this product won't work for your application. We do offer a diy option
https://www.barnes4wd.com/Universal-DIY-Double-Ended-Ram-Mount_p_1159.html
Answer provided by:
Joe Ledford (11/4/2019)
Submit an answer
Q:
Could this ram mount be used with the Superduty 60 TJ Swap Kit? Some things would need to be trimmed for sure...
Asked by:
Ian
- 1/19/2020
A:
We have not tested that out. We are not going to say it won't work but yes there would probably need to be many modifications on your end.
Answer provided by:
Conner (1/22/2020)
Submit an answer
Q:
I have a superduty with a low profile truss on it for my buggy, is it possible to modify this to fit and work with that style truss ?
Asked by:
Rey
- 2/20/2020
A:
It would take some major modification. This kit was designed to work with that specific truss so you are potentially compromising the strength of the kit.
Answer provided by:
Conner (2/26/2020)
Submit an answer
