Link Tower
Link Tower
Add to Build Sheet
Q&A
Link Tower
4
Review(s)
5
0
5
Write a Review
Your Price:
$37.00
Our axle link tower has 3 adjustable position that can be easily changed form 7, 8, and 9 from the center of the joint the center of the axle tube.
Part Number:
B4WK124
Availability:
In Stock
Choose Options

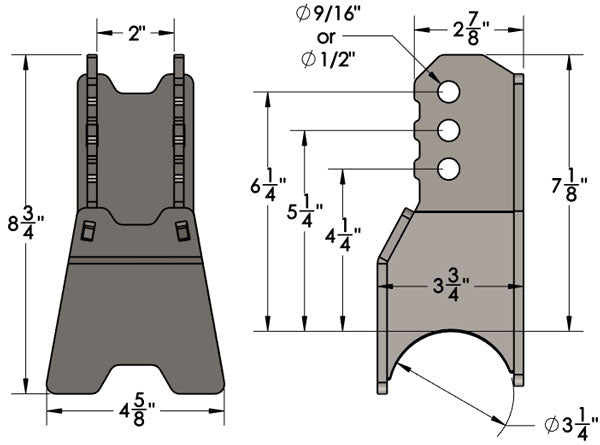

Mounting Width & Bolt Hole Size
*
2" Wide, 1/2" Bolt Hole
2" Wide, 9/16" Bolt Hole

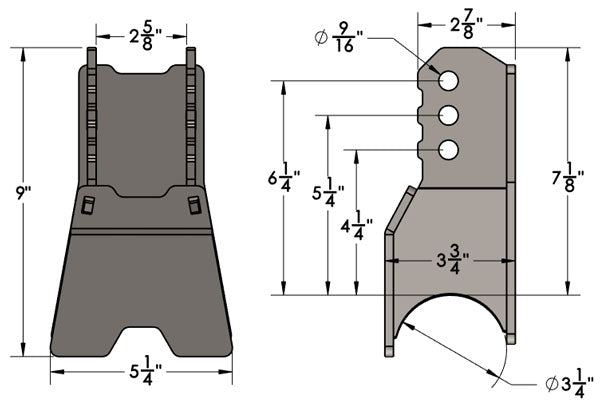

2 5/8" Wide, 9/16" Bolt Hole
Put me on the Waiting List
Quantity
+
-
Add to Cart
Description
Customer Reviews

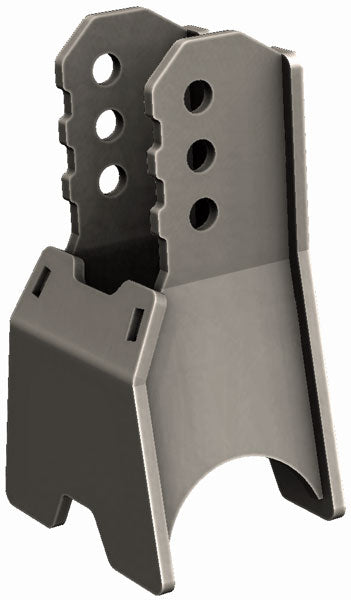

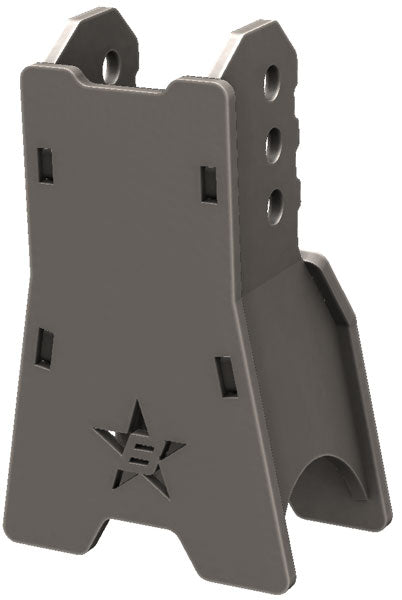

Our axle link tower has 3 adjustable position that can be easily changed form 4-1/4, 5-1/4, and 6-1/4 inches from the center of the joint to the top of the axle tube. In the future if you decide to change tire size this design simplifies the adjustment of your link suspension. This prevents having to cut off your old link tower in order to maintain proper suspension geometry. The link tower is incredibly strong, it is made form 1/4" steel and bent for rigidity. It also features a 1/4" weld in bridge plate. These are made to be attached to an axle with a 3-1/4 inch tube, but can easily be modified to fit other tube diameters.
Rating Snapshot
Select a row below to filter reviews.
5 Stars
4
4 Stars
0
3 Stars
0
2 Stars
0
1 Stars
0
4 Stars
Clear Filter
×
Average Customer Ratings
5.0
Jeeper
Can't beat for the price. Fast shipping.
Reviewed by:
(Verified Buyer)
Jason Poore
from Indiana on 6/1/2016
5
Frint axle 4 link buil DIY
perfect and looks indestructible as all their products are. I think this could be used in a link set up rear with track bar.
Reviewed by:
(Verified Buyer)
Brian Earle
from St Cloud Fl on 12/28/2014
5
Control Arm Bracket
Solid, easy assembly, friends like it.
Reviewed by:
Wayne Phillips
from LaCenter, WA on 1/26/2014
5
Great product.
There has been a need for 2 mounting widths and Barnes has delivered. Great product, great price, and easy to use. Thanks Tim Kirk T&C 4x4 Customs
Reviewed by:
Timothy Kirk
from Cumming, GA on 1/19/2013
5
