Jeep TJ or LJ Ford 8.8 Swap Kit With Truss

B4WK1152
Regular price $297.07 USD
Regular price Sale price $297.07 USD
Sale Sold out
Add To Wishlist

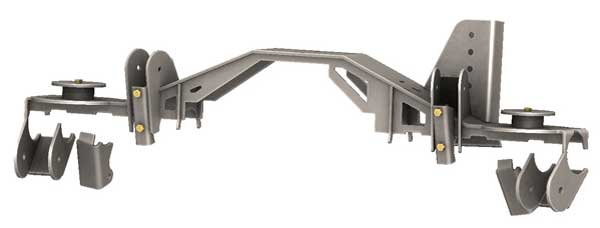

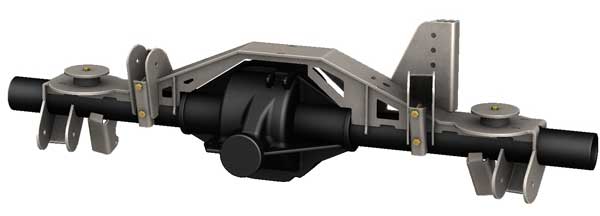

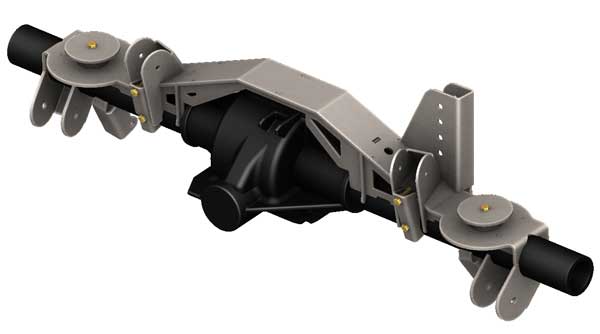

This is our Jeep TJ or LJ Ford 8.8 truss axle swap kit, this is a complete bracket kit to swap a Ford 8.8 into your Jeep TJ or LJ with the added benefit of a truss.  The 8.8 is a huge upgrade in the jeep, it has a matching lug pattern, a much larger ring and pinion, larger axle shafts, and a overall stronger housing than the stock axle.  We have designed this kit from the ground up to be the easiest kit available to install.  All components are located off from the truss, you simply center the truss on the axle, level it, place the brackets on the axle and weld.  The only time you will need to use a tape measure, is to center the truss on the axle and to locate the shock brackets.  This kit is compatible with Ford 8.8 axles with a 3 1/4" axle tube.

Have a look at our instructions here, to see just how easy it is!

Here is a list of all the parts included in this kit:

  • 1 Ford 8.8 Truss
  • 2 Upper Control Arm Mounts
  • 1 Track Bar Bracket
  • 2 Sway Bar Mounts
  • 2 Lower Control Arm Mounts
  • 2 Shock Mounts
  • 6 3/8 Grade 8 Nuts
  • 6 3/8 Grade 8 Washers
  • 6 3/8" Grade 8 Bolts

If you are looking for a bracket kit for the Jeep TJ without the truss click here.


8.8 Swap Installation Instructions
