Jeep TJ, LJ, MJ, XJ, and ZJ Front Axle Coil Spring Brackets
Jeep TJ XJ MJ LJ ZJ Front Axle Spring Mounts
Add to Build Sheet
Q&A
Jeep TJ, LJ, MJ, XJ, and ZJ Front Axle Coil Spring Brackets
3
Review(s)
5
0
5
Write a Review
Your Price:
$150.00
If you are looking at replacing the front axle coil spring brackets on your TJ, LJ, MJ, XJ, or ZJ we have you covered.
Part Number:
B4WK0266
Availability:
In Stock
Put me on the Waiting List
Quantity
+
-
Add to Cart
Description
Customer Reviews
Questions and Answers

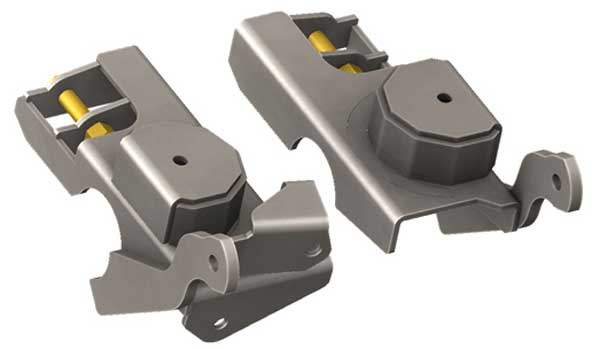

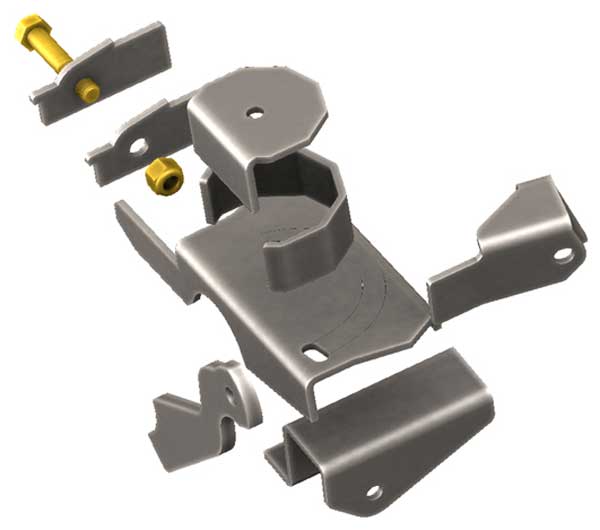

If you are looking at replacing the front axle coil spring brackets on your TJ, LJ, MJ, XJ, or ZJ we have you covered. These brackets are exact duplicates of the factory brackets and have all of the associated mounting locations built in. This kit includes brackets for the passenger and driver side of your jeep and will accommodate the mounting of your coil springs, shocks, track bar, steering stabilizer, and sway bar ends. These brackets are just what you need to replace rusted out factory brackets, or with a little modification they can be used for an axle swap. The brackets are manufactured with a section that is cut to cradle the bottom coil of the spring, this tab will need to be bent down and welded into place upon installation. The brackets will ship bare and need to be assembled and welded to the axle during installation. All components are manufactured from 3/16" steel, giving you a much stronger bracket than factory.
Rating Snapshot
Select a row below to filter reviews.
5 Stars
3
4 Stars
0
3 Stars
0
2 Stars
0
1 Stars
0
4 Stars
Clear Filter
×
Average Customer Ratings
5.0
Great Product

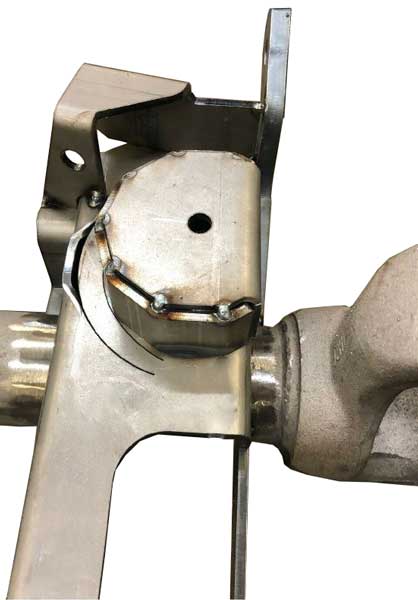

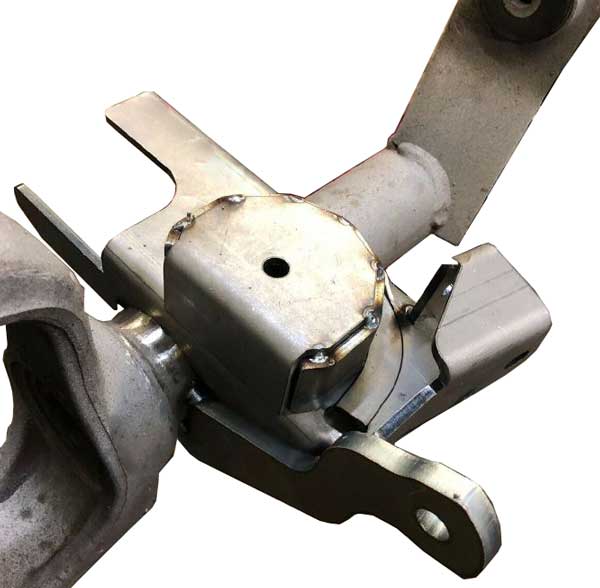

I bought these to replace rusty coil bucket on a 98 XJ. While at first I thought they were a little pricey (buying from Canada), it was clear upon arrival that these were a high quality product. I liked that these retained the factory mounting brackets for the track bar, steering stabilizer, and sway bar. The assembly instructions on the Barnes website are clear and very easy to follow. Installation was straight forward and everything bolted back up as it should. Excellent!!!
Reviewed by:
Colin Oickle
from Halifax on 11/4/2019
5
Perfect
I bought these for a front dana44 swap for a 2000 tj. So far they are very heavy duty. With a little fab work i can make them fit. Retains factory suspension brackets too! Perfect piece if your trying to do a budget axle swap
Reviewed by:
(Verified Buyer)
Dillon Rakes
from Spartanburg on 1/30/2019
5
manager
great product
Reviewed by:
(Verified Buyer)
joe bonney
from suffolk on 4/4/2018
5
Q:
TJ front axle spring mount is there shock an upper control arm mounts available?
Asked by:
joe
- 10/19/2019
A:
At this point every suspension bracket under a TJ is listed in the suspension section of our TJ category.
Answer provided by:
Clayton Arrowood (10/22/2019)
Submit an answer
Q:
Will this fit a 3 inch axle tube? If bit do you have a kit that will ?
Asked by:
Jimmyray
- 4/18/2020
A:
These were made for a 2.75 axle tube but could be modified to fit a 3" tube. However these were made to be direct factory replacements of TJ coil spring brackets so unless that is the use you're using them for you may have more modifications as well.
Answer provided by:
Conner (4/20/2020)
Submit an answer
Q:
I have a 1996 jeep Cherokee sport. Will this kit work for my application , it looks like the lower shock mount is different. Will I need to use a different shock or fabricate a plate on the kit? Thanks
Asked by:
Glenn Knoll
- 5/20/2020
A:
No this should work for your rig.
Answer provided by:
Conner (5/21/2020)
Submit an answer
Q:
I am from Austria / Europe. Therefore my Wrangler TJ year 1997 has left stearing not right stearing like in the USA, I need left and right Front Axle Coil Spring Brackets?
Asked by:
Walther
- 8/29/2020
A:
Hello.
Unfortunately this is not a option we offer.
Thank you.
Answer provided by:
Clayton Arrowood (8/31/2020)
Submit an answer
Q:
This part work dana 30 jeep tj
Asked by:
IVAN PANTOJA
- 10/18/2020
A:
Yes.
Answer provided by:
Clayton Arrowood (10/22/2020)
Submit an answer
Q:
does these fit stock 2.5 inch Dia. XJ Dana 30 axle tubes?
Asked by:
John Humble
- 12/1/2020
A:
Yes.
Answer provided by:
Clayton Arrowood (12/2/2020)
Submit an answer
