Frenched Shock Tower Pair
Frenched Shock Tower Pair
Add to Build Sheet
Q&A
Frenched Shock Tower Pair
7
Review(s)
5
0
5
Write a Review
Your Price:
$107.00
Barnes 4WD Frenched shock towers are great way to get your Air shocks, Coilovers or ORI struts out boarded so they can work to their full potential.
Part Number:
B4WK12501
Availability:
In Stock
Choose Options
Length
*
Standard
Long [+$24.00]
Put me on the Waiting List
Quantity
+
-
Add to Cart
Description
Customer Reviews
Questions and Answers

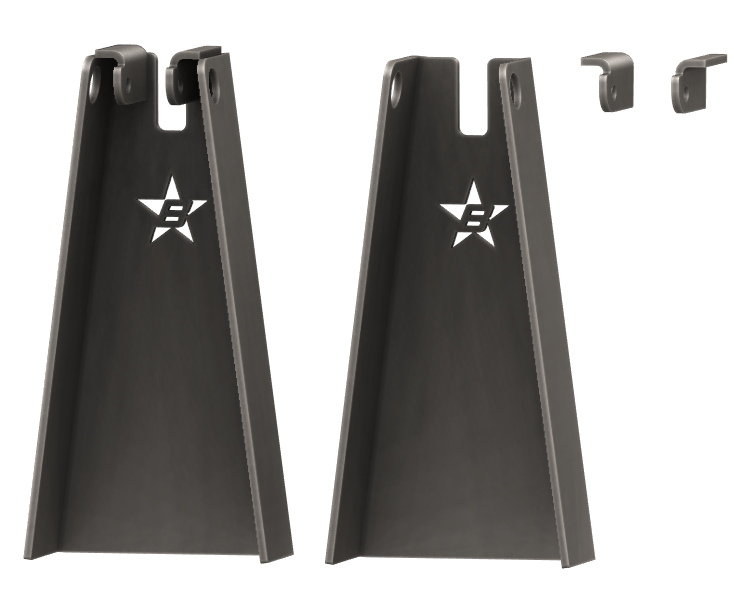

Barnes 4WD Frenched shock towers are great way to get your Air shocks, Coilovers or ORI struts out boarded so they can work to their full potential. These shock towers are made from ¼ steel. Sure we could have made them out of 3/16 and saved some money but we did not feel that would withstand the abuse that rigs are now seeing. These Shock towers measure 16 long so you can mount them in just the right height for your shock length and ride height and then cut off the extra. Our design allows you to weld in the shock tabs for a double shear mount at you desired shock mounting width. For any additionally needed strength you can our
large gusset
to each side of the shock tower. Most customers find that our
Behind The Axle Shock Bracket
is the best fit for this shock tower. These shock towers are sold in pairs. Our standard shock tower is 15.25" from the center of the bolt hole to the bottom of the tower and the long measures 17.75"
Rating Snapshot
Select a row below to filter reviews.
5 Stars
7
4 Stars
0
3 Stars
0
2 Stars
0
1 Stars
0
4 Stars
Clear Filter
×
Average Customer Ratings
5.0
View All Reviews
Great product
These towers worked perfectly for me and were way more budget-friendly than some other brands. Very beefy and the tabs allowed me to customize my shock placement just how I needed. I used the long version for the front and rear of my TJ in order to mount 14" 2.625" bypass shocks up as high as possible for minimal lift. These towers allowed me to get the shock mount as high as I needed and gave me ample room for the shocks.
Reviewed by:
(Verified Buyer)
Marcus Riley
from RUNNING on 2/13/2021
5
Worked great
Stout and perfect bends. Counter sunk into the frame and I don’t have to worry about it being a weak spot
Reviewed by:
(Verified Buyer)
Mike Fry
from Pa on 7/7/2020
5
fabricator
Great well built shock towers. Made with Thick steel to handle all types of abuse.
Reviewed by:
(Verified Buyer)
Thomas Deponte
from usa on 10/17/2019
5
Awesome towers
Bought the hoops originally but turns out they wouldn’t work. Barnes returned them for the towers with no issues. I have these for my front and rear of my xj with 14” coilovers up front. Can’t wait to test it out. Great product
Reviewed by:
(Verified Buyer)
Steven Byrd
from Detroit on 5/6/2018
5
Frenched towers
Installed on rear of jeep tj. Solid shock towers. Ordered long for a 5 inch stretch and angled towards the back 20*. Using 16 in coilovers.
Reviewed by:
(Verified Buyer)
eric rodello
from California on 9/16/2016
5
Load More
Q:
Can you please provide the width of the tower, at the top, 1” from the top, and 2” from the top? Going to use to mount coil overs and need to know how the taper of the tower changes for 2.5” coil overs. Don’t have coil overs in hand yet sorry.
Asked by:
Bryan
- 3/6/2019
A:
Bryan,
Thanks for the question! The measurements we’re referencing are just for the shock tower. This tower comes with two tabs that are to be welded on, these tabs give you a shock mounting width of 1.5” inches. With that being said the top measurement is taken from the center of the shock mounting holes, pulling from inside to inside of the tower.
Top: 3.75 inches
1 Inch from top: 3.843 inches
2 inches from top: 4.1 inches
Answer provided by:
Joe Ledford (3/6/2019)
Submit an answer
Q:
Will the standard length be ok for a 14" coilover on a TJ?
Asked by:
sm
- 3/8/2019
A:
The standard shock tower measures 15-1/4" from the bottom to the center of the shock mounting location. This can be adjusted up or down depending on where you attach the tower to your frame. This bracket should work, but we recommend pulling measurements with your particular application to verify fitment.
Answer provided by:
Matt Pless (3/15/2019)
Submit an answer
Q:
G'day I'm from Australia and would love to order some parts for my TJ jeep build from you. Do these Frenched shock towers fit a 3 inch coil over. Cheers from Graham Wilson?
Asked by:
GrahamWilson
- 2/27/2019
A:
It would depend on the overall outside diameter of your shock with the springs installed. If you can provide us with that dimension we can confirm comparability. Please give us a call with your dimensions and we will check. 828-551-7616
Answer provided by:
Matt Pless (3/4/2019)
Submit an answer
Q:
What is the distance from the back plate out to the mounting point hole?
Asked by:
CaseyB
- 3/23/2020
A:
From the inside of the bracket to the mounting location it is 2 1/16 inches.
Answer provided by:
AJ Morgan (3/25/2020)
Submit an answer
Q:
Hello French shock tower pair Do you support JKU Wrangler? Front back
Asked by:
takesi
- 2/23/2021
A:
This is a custom DIY part. It can be used on a JK, however some custom fabrication will be required during installation.
Answer provided by:
Matt Pless (2/24/2021)
Submit an answer
