Flush Mount Lower Triangulated 4 Link Bracket
Flush Mount Lower Triangulated Four Link Bracket
Add to Build Sheet
Q&A
Flush Mount Lower Triangulated 4 Link Bracket
2
Review(s)
5
0
5
Write a Review
Your Price:
$53.00
If you are looking to have a dual triangulated four link suspension then this is the bracket for your project.
Part Number:
B4WK1063
Availability:
In Stock
Put me on the Waiting List
Quantity
+
-
Add to Cart
Description
Customer Reviews
Questions and Answers

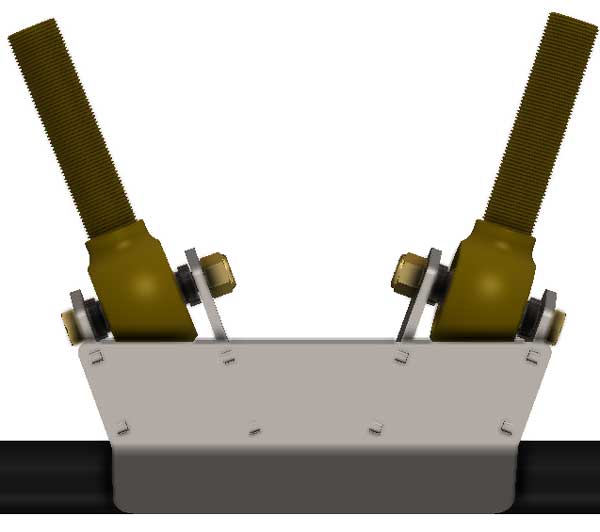

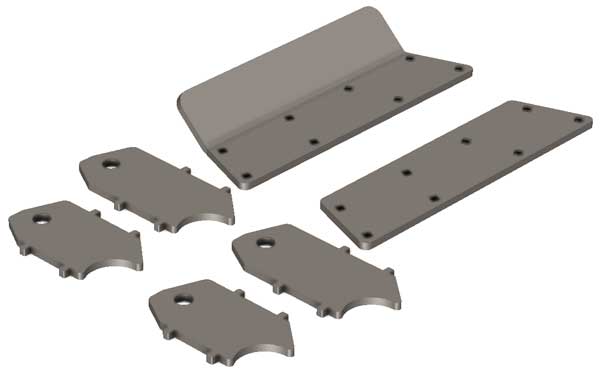

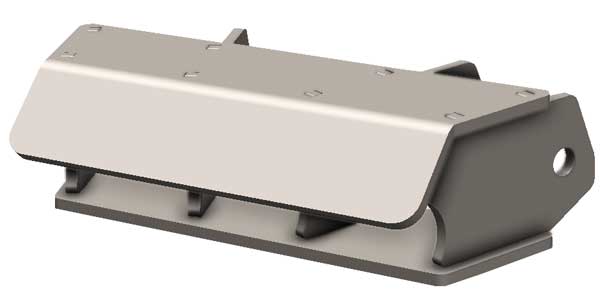

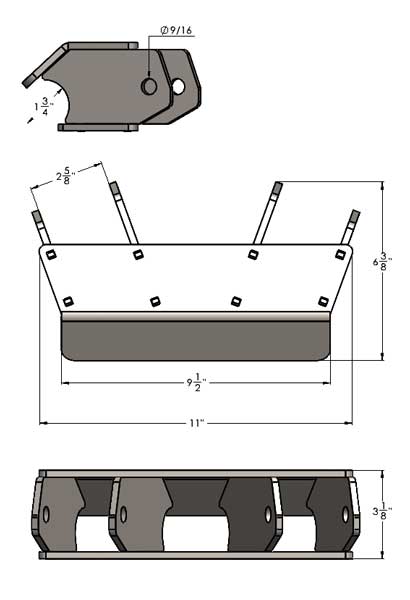

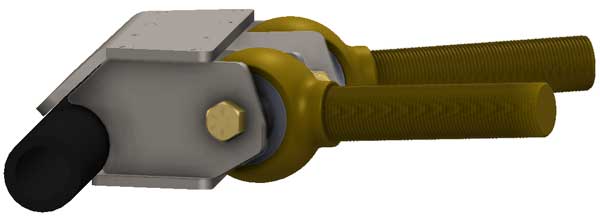

If you are looking to have a dual triangulated four link suspension then this is the bracket for your project. Our Flush Mount Lower Triangulated 4 Link Bracket is cut from ¼ A-572 Plate and is made to take tons of abuse. What makes our bracket different from our completion is that our bracket does not hang down any lower than the tube that it is welded. This allows you to keep your flat belly and not have an anchor hanging down right in the center of your rig! This bracket is cut so that it will self align to a 2 5/8 mounting width and a 20 degree with 9/16" bolt hole.
Rating Snapshot
Select a row below to filter reviews.
5 Stars
2
4 Stars
0
3 Stars
0
2 Stars
0
1 Stars
0
4 Stars
Clear Filter
×
Average Customer Ratings
5.0
The Boss
nice stuff built well
Reviewed by:
michael vestich
from Michigan on 11/15/2015
5
fab and design
High quality, great piece, will be using again, great price
Reviewed by:
(Verified Buyer)
Todd Fisher
from washigton on 12/12/2013
5
Q:
could the bracket be modified to work with the Enduro joint?
Asked by:
Andrew
- 5/2/2020
A:
You potentially could but we are working on a new version of this to work with enduro joints so if it were me I would wait for that to save you some potential head ache.
Answer provided by:
Conner (5/4/2020)
Submit an answer
Q:
What does this mount to? It looks like a center mount for the lower links of a triangulated 4 link kit, but that would mean it mounts to the center of the axle? Where the diff is?
Asked by:
Thom
- 8/10/2020
A:

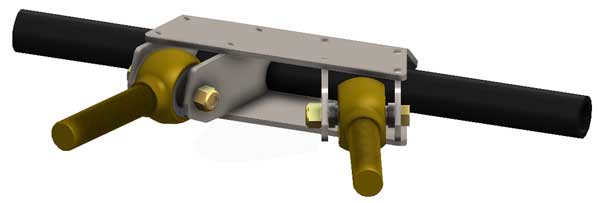

This is intended to be welded to a dom tube cross member.
Answer provided by:
Clayton Arrowood (8/14/2020)
