Cage Tie In Bracket
Write a Review
Your Price:
$38.00
Our Barnes 4WD Cage Tie In Bracket is perfect for any fabricator looking to add strength to their roll cage.
Part Number:
B4WK12438
LEAD TIME:
In Stock & ready to ship.
Put me on the Waiting List
Quantity
+
-
Add to Cart
Description & Installation Instructions
Questions and Answers

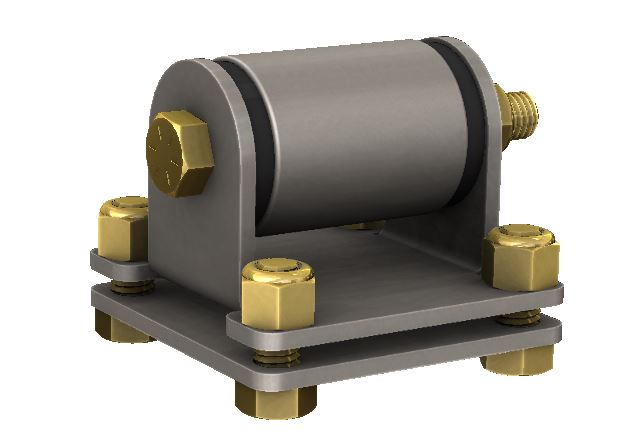

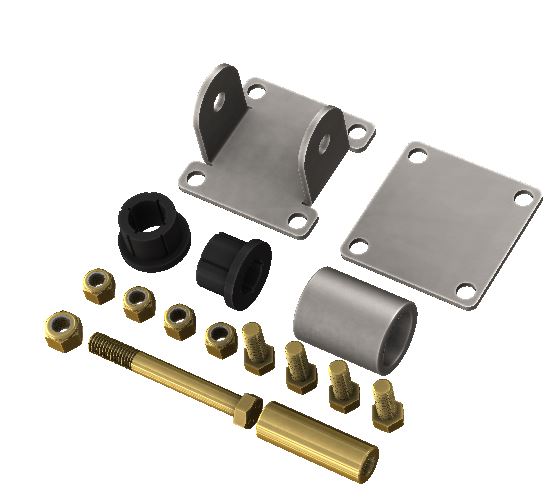

Our Barnes 4WD Cage Tie In Bracket is perfect for any fabricator looking to add strength to their roll cage. Our universal cage tie in bracket is designed to tie your cage through the floor into the frame to make it super safe and strong. The bracket is designed to have flex between the frame and the body but be extremely strong in a roll over. The Brackets are fabricated with 3/16 inch steel and uses a DOM sleeve poly bushing kit. This kit includes all grade 8 hardware and comes bare steel and ready to weld.
Q:
When will the cage tie in kit be available?
Asked by:
Jeramy
- 11/6/2019
A:
Those should be available for sale next week.
Answer provided by:
Joe Ledford (11/6/2019)
Submit an answer
Q:
What is the hole To hole distance?
Asked by:
James
- 11/18/2019
A:
3 3/8" center to center.
Answer provided by:
Clayton Arrowood (1/31/2020)
A:

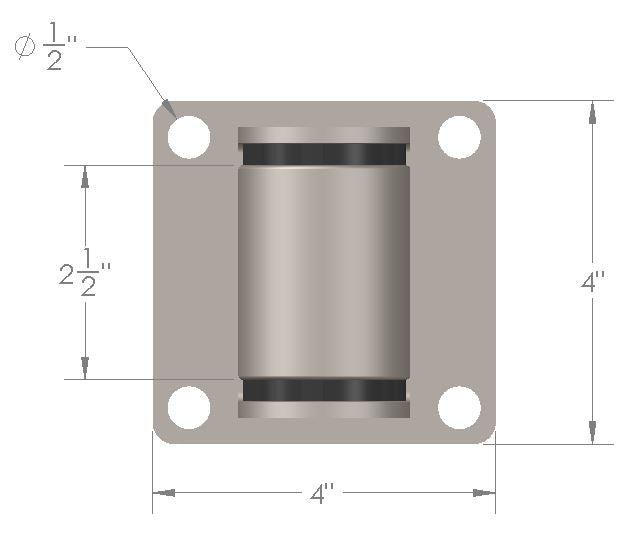

There is a full dimensional drawing up on the website hole to hole appears to be 2 1/2.
Thanks
Answer provided by:
Tommy Bell (11/19/2019)
Submit an answer
Q:
When I order these, is this a kit with 2 brackets or only 1 ?
Asked by:
Curtis
- 1/30/2020
A:
This is sold individually.
Answer provided by:
Clayton Arrowood (1/31/2020)
Submit an answer
Q:
What bushing kit would I need for this ?
Asked by:
Curtis
- 1/30/2020
A:
The dom and bushing kit is included.
Answer provided by:
Clayton Arrowood (1/31/2020)
Submit an answer
Q:
What is the overall height and what is the bushing to plate height?
Asked by:
JJ
- 4/1/2020
A:
These weren't measured with calipers but should get you what you need.
Overall height: 2 1/2"
Bushing to plate height: 1/2"
Answer provided by:
Conner (4/6/2020)
Submit an answer
Q:
What is the size tubing used in this kit?
Asked by:
Evan Doucet
- 3/6/2021
A:
It comes with 2" quarter wall tubing for the OD Sleeve
Answer provided by:
AJ Morgan (3/9/2021)
Submit an answer
Q:
What size is the center bolt?
Asked by:
Ron Linstra
- 9/30/2021
A:
9/16".
Answer provided by:
Clayton Arrowood (10/5/2021)
Submit an answer
