Offset GM 1 Ton Tie Rod End OS2234R Right Hand
Offset one ton tierod end
Add to Build Sheet
Q&A
Offset GM 1 Ton Tie Rod End OS2234R Right Hand
Write a Review
Your Price:
$27.50
If you are having clearance issues with your steering then our offset tie rod end (OS2234R) may just be what the doctor ordered this will offset your tie rod 1.
Part Number:
OS2234R
Availability:
In Stock
Put me on the Waiting List
Quantity
+
-
Add to Cart
Description
Questions and Answers

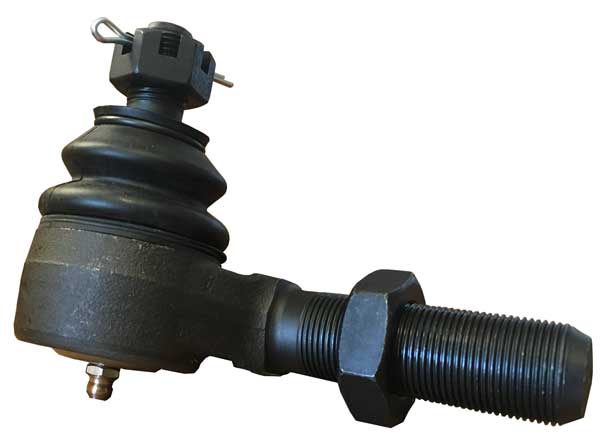

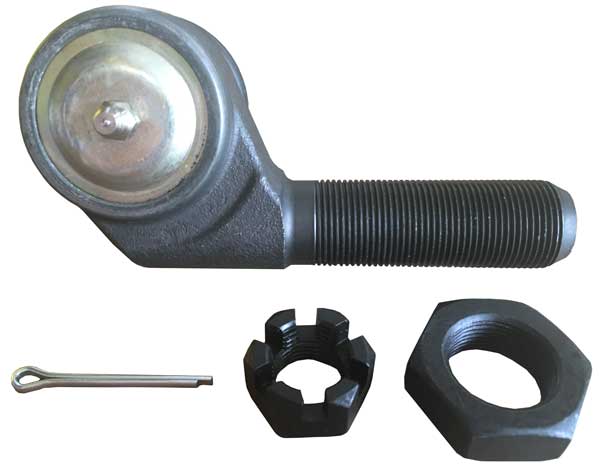

If you are having clearance issues with your steering then our offset tie rod end (OS2234R) may just be what the doctor ordered this will offset your tie rod 1". This is a right hand thread offset tie rod end that is based of from the legendary GM 1 ton tie rod end, it shares the same taper (7° or 1.5" per ft.) and will fit most dana 60 front axles. These are sold individually. These TRE have a 7/8-18 thread pitch and we include a jam nut with them.
Q:
I'm pretty sure my bar is left hand thread (utk gm 1 ton) but I'm going otk. Will this work? Do I need an alignment spacer?
Asked by:
Kevin
- 10/29/2019
No Answers have been submitted yet.
