Axle Link Mount Bracket Pair
Axle Link Mount Bracket Pair
Add to Build Sheet
Q&A
Axle Link Mount Bracket Pair
13
Review(s)
5
0
5
Write a Review
Your Price:
$25.00
These axle link mounts are made to be welded directly to the axle tube.
Part Number:
B4W250182P
Availability:
In Stock
Choose Options
Mounting Configuration
*
2 Wide, 0 Degree, 1/2 Bolt Hole
2 Wide, 10 Degree, 1/2 Bolt Hole
2 Wide, 20 Degree, 1/2 Bolt Hole
2 5/8 Wide, 0 Degree, 9/16 Bolt Hole
2 5/8 Wide, 10 Degree, 9/16 Bolt Hole
2 5/8 Wide, 20 Degree, 9/16 Bolt Hole
Put me on the Waiting List
Quantity
+
-
Add to Cart
Description
Customer Reviews
Questions and Answers

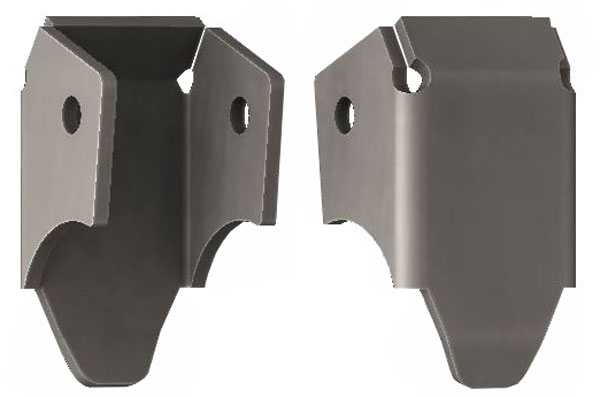

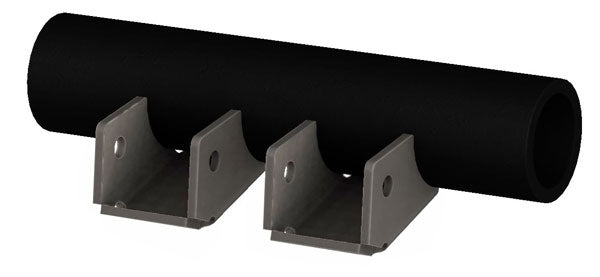

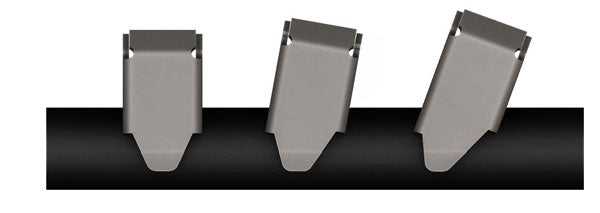

These axle link mounts are made to be welded directly to the axle tube. This is a super strong CNC bent, Laser cut bracket made to take serious abuse. Perfect for a three link or four link suspension system. These are made to be attached to your axle and have an inside width of 2 5/8" or 2". We offer three different mounting angles so that you can mount your suspension joints in a neutral position to maximize joint articulation. Like all of our products, they are made in the USA from USA steel.
Rating Snapshot
Select a row below to filter reviews.
5 Stars
13
4 Stars
0
3 Stars
0
2 Stars
0
1 Stars
0
4 Stars
Clear Filter
×
Average Customer Ratings
5.0
View All Reviews
Good quality

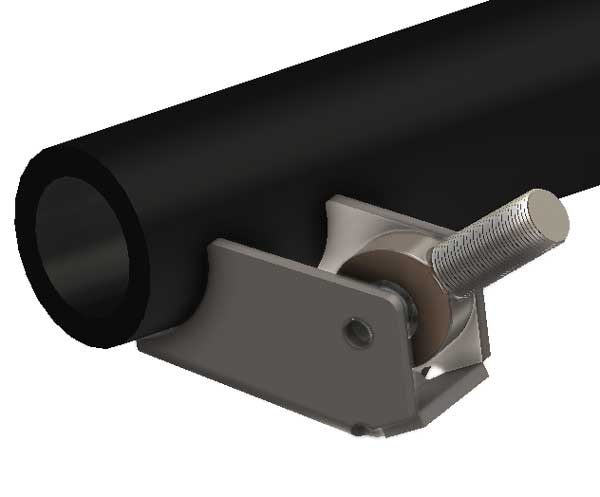

Mounts worked as they should. Nice clean metal and the bends looked great. Heim joint fit as it should without having to force it between the bracket. Really pleased with parts. Angle worked great for my lowers also
Reviewed by:
(Verified Buyer)
Eddie Clingen
from Huntsville on 3/9/2020
5
Great Value
I have used these brackets on multiple builds. They work well and are affordable.
Reviewed by:
(Verified Buyer)
Josh Pettet
from Idaho on 11/2/2018
5
TJ brackets
These are quality and great fit brackets. I’m using them to swap a Ford 10.25 axle into my TJ along with the coil spring brackets and stretch kit. I had to do some minor grinding as they are meant to fit an 3.25 axle tube, no problems though. Barnes 4wd has great products, excellent customer service, and affordable prices.
Reviewed by:
(Verified Buyer)
Omar Venegas
from Colorado on 3/25/2018
5
Owner
Great product fast delivery
Reviewed by:
(Verified Buyer)
jay francis
from CT on 10/6/2017
5
Axle Link Brackets
Great quality and super fast shipping.... Recommended to anyone who is after proper stuff for their build
Reviewed by:
(Verified Buyer)
Sandra Barnwell
from Barbados on 6/21/2017
5
Load More
Q:
What size axle tube do these brackets fit? I have a '05 SD-60 front diff im installing them on. Thanks
Asked by:
Tracy
- 11/18/2019
A:
Typically these fit a 3 inch axle tube but you could grind it out to 3 1/4.
Answer provided by:
Tommy Bell (11/19/2019)
Submit an answer
Q:
Is it possible to get these brackets with a 1” hole? If not, is there enough metal for me to drill them out?
Asked by:
Gary Davenport
- 4/20/2019
A:
We do not offer these in a 1" hole, however there is plenty of material to accommodate drilling to a 1".
Answer provided by:
Matt Pless (4/22/2019)
Submit an answer
Q:
Do you have any retailers in Calgary Alberta Canada?, if not, Do you ship to Canada?....thanks in advance.
Asked by:
Dan
- 4/22/2019
A:
I am not aware of any dealers that we have in that area. We do ship to Canada. When you get to the checkout screen, enter your full address and you will be provided with the cost of shipping.
Answer provided by:
Matt Pless (4/22/2019)
Submit an answer
Q:
Whats the distance between the center of the hole and the axle tube?
Asked by:
Tim
- 1/12/2020
A:

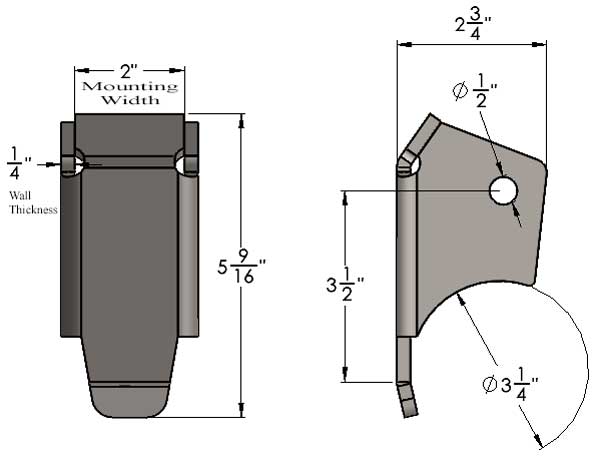

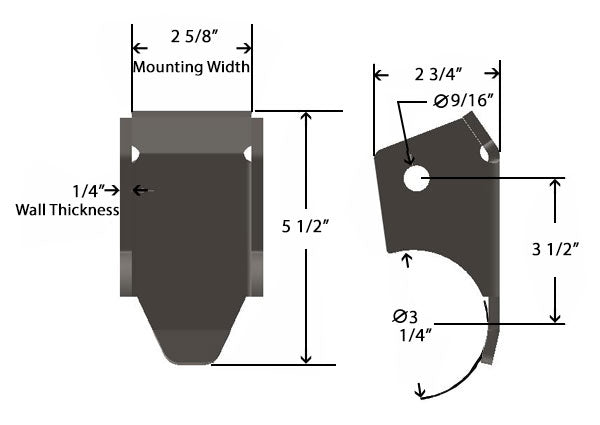

This will change depending on the selection please view the dimensional drawings below the main product picture.
Answer provided by:
Clayton Arrowood (1/17/2020)
Submit an answer
Q:
What is the dimension from the center of a 3" axle housing to the center of the link bolt on this bracket?
Asked by:
Jerry
- 2/19/2020
A:
2 3/4" from center of the axle tube to the center of the bolt hole.
Answer provided by:
Conner (2/26/2020)
Submit an answer
Q:

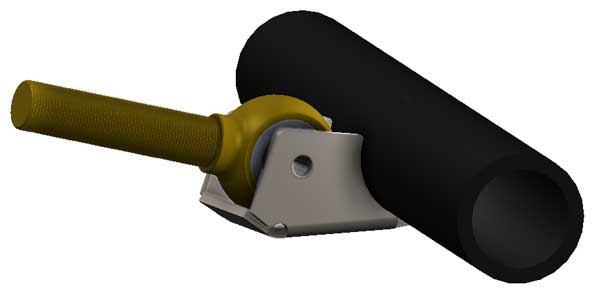

Will these work with the Enduro joints? Thank you!
Asked by:
Jason
- 4/29/2020
A:
They will however our current truss link mounts will not.
Answer provided by:
Conner (5/18/2020)
Submit an answer
Q:
Is the 2" wide with a 20 degree angle enough triangulation for the upper links?
Asked by:
Rustylocke
- 5/14/2020
A:
Yes if you use them on both sides of the vehicle. The golden rule is the you need 40° of triangulation total. You can achieve this by having 20° of triangulation on two uppers or two lowers.
Answer provided by:
Conner (5/18/2020)
Submit an answer
