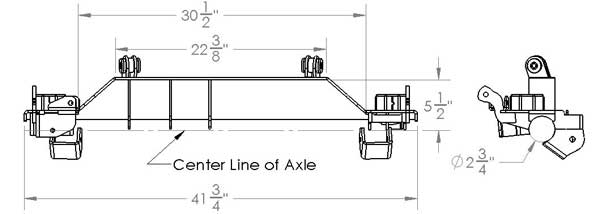

  •  Jeep TJ, LJ, XJ, ZJ, and MJ Blank Front Swap Kit Dimensions
1 of 2

Barnes4wd

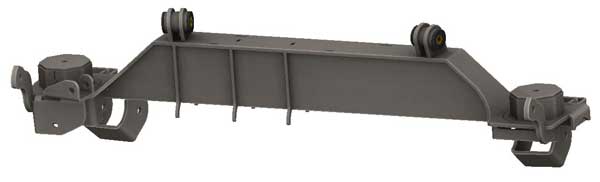

Jeep TJ, LJ, XJ, ZJ, and MJ Blank Front Swap Kit

B4WK12681
Regular price $280.71 USD
Regular price Sale price $280.71 USD
Sale Sold out
Add To Wishlist
We designed our Jeep TJ blank front axle swap kit to be an universal solution for installing a Dana 44 style axle into the front of your Jeep TJ, LJ, XJ, ZJ, or MJ. All parts of this kit are keyed to the truss making installation a breeze. Simple set your caster angle, center and level the truss and all other components will locate from the truss. This kit includes all of the needed suspension brackets to install an upgraded axle under your jeep, welding and cutting is required.

Installation Notes:

  • The upper control arm mounts on this kit are approximately 1 -1/4" higher. Adjustable control arms are recommended.
  • Brake lines, driveshaft modifications, vent tube, and Steering linkage are responsibility of the end user.
  • The truss is designed to fit a Dana 44 size axle. This will not fit a 1ton axle.
  • Check the product dimensions to confirm fitment before ordering.
