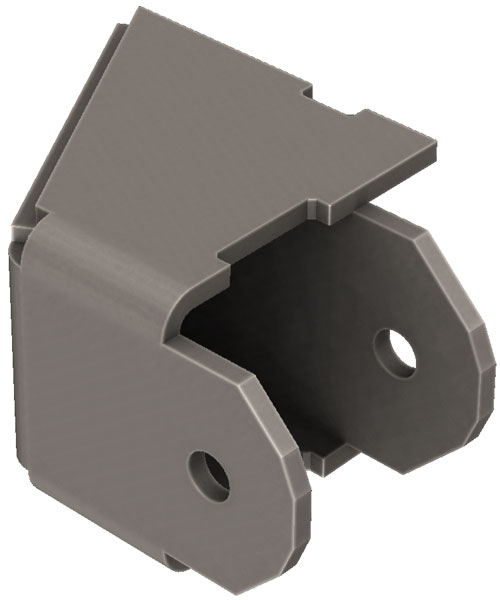

  • Upper Inner Frame Link Mount

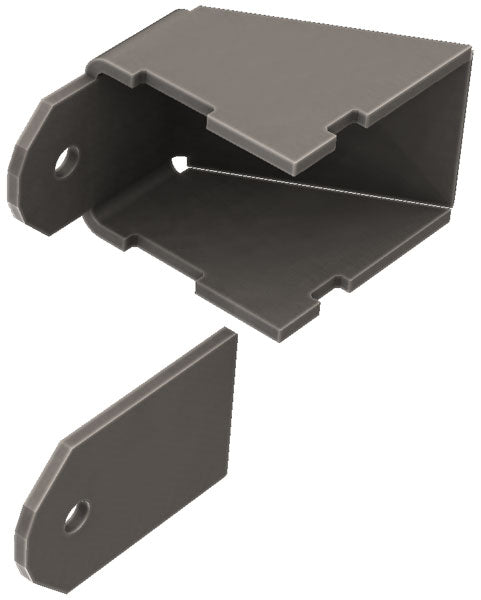

  • UPPER FRAME MOUNT EXPLODED

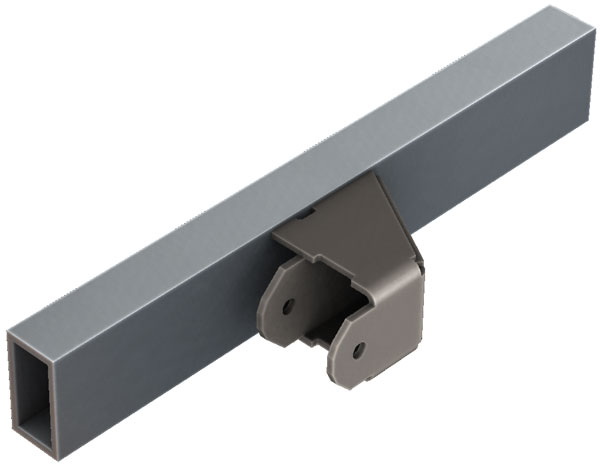

  • UPPER CONTROL ARM MOUNT INSTALLED

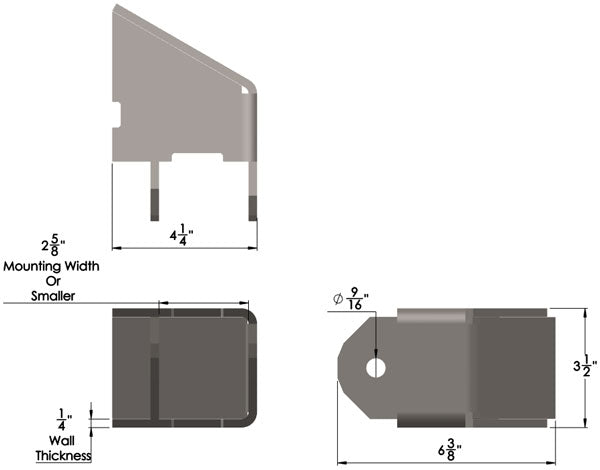

  • CONTROL ARM FRAME MOUNT DIMENSIONS 0°

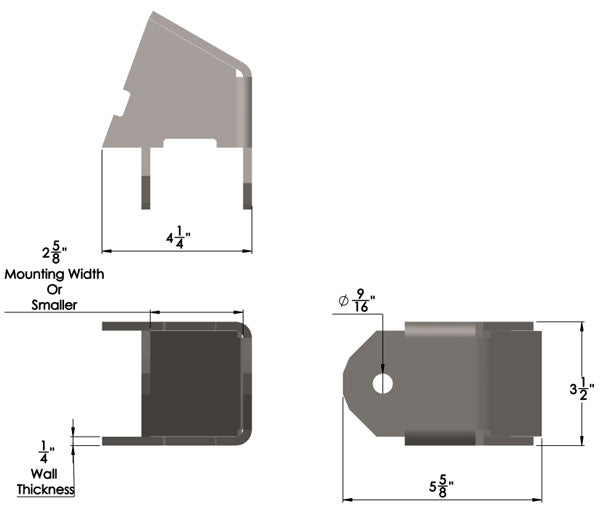

  • FRAME LINK MOUNT DIMENSIONS 20°

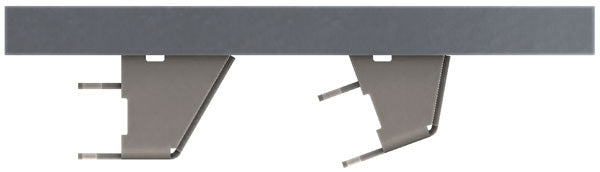

  • UPPER INNER CONTROL ARM MOUNT ANGLES
1 of 6

Barnes 4WD

Upper Inner Frame Link Mount

B4WK0023
Regular price $24.87 USD
Regular price Sale price $24.87 USD
Sale Sold out
Mounting Configuration
Add To Wishlist

Perfect for a three link or four link suspension system. These brackets are made to be welded to the side of your frame, and they have an adjustable mounting width that can be used with any suspension joint that has a 2 5/8 mounting width or smaller. These are sold in individually.
